Emerson UPS

Buy From The Best Emerson UPS Dealers In Chennai

We are the Authorised Enterprise Business Partner for Vertiv Online UPS System formerly known as Emerson Network Power and we are their UPS suppliers in Chennai.

Emerson Liebert Online UPS System has fully IGBT Double Conversion technology, it can be fully adapted to meet diverse requirement in terms of battery backup time, power redundancy and configuration and also at the same time delivers the best protection for your equipments.

Emerson Liebert UPS also provides extraordinary saving on installation and running costs and also reduces the need for heavy equipment like generator sets, circuit protection, cabling and transformers, etc. for enabling uninterrupted power. Emerson Liebert UPS has different models ranging from 600VA – 4800KVA.

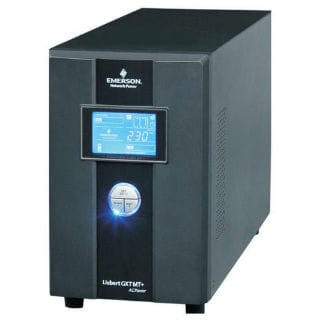

Emerson Liebert UPS

Your Search For Emerson UPS In Chennai Ends Here

Emerson UPS caters to various applications that include small computer rooms, data centers, critical facilities, hosting places, desktops and even emergency lighting. Even many departments like cloud computing and mobile telephony industry are using Emerson UPS to support them during power difficulties. In the case of critical operations, a UPS is highly desired and hence any type of backup power supply cannot be used. In such cases Emerson UPS comes in handy. These can be customized as per the needs of the client and business. The wide range of applications and the customer friendly support is what makes Emerson UPS a favourite among many clients.

FEATURES
  • Thd < 3% clean grid
  • Input PF > 0.99
  • No Deration through Entire Load
  • Automation Power Adjustment
  • Maximum Power Availability
  • Having Rack and Tower Model
  • Fully Galvanic Isolation also Built-in Option
  • High Efficiency
APPLICATIONS
All Industries
Hospitals
Educational Institutions
Banking Sector
BPO/ IT Sector
Logistics
SME
Medical Instruments
Defense
Used of all Sophisticated Machines..
OUR PRODUCTS
SPECIFICATIONS
Power RatingInput VoltageOutput VoltageHeightWidthDepthWeight
600VA220/230 VAC±10%142 mm101 mm279 mm4.2 kgs
SPECIFICATIONS
Power RatingInput VoltageOutput Voltage
1/2/3 kVA230 VAC208/220/230/240VAC
SPECIFICATIONS
Power RatingInput VoltageOutput Voltage
1/2/3 kVA230 VAC208/220/230/240VAC
SPECIFICATIONS
Power Rating Input Voltage Output Voltage Height Width Depth Weight
6 kVA 230 VAC 6kVA / 4.2kW 550 mm 425 mm 730 mm 95 kg
SPECIFICATIONS
Power RatingInput VoltageOutput VoltageHeightWidthDepthWeight
600VA220/230 VAC±10%142 mm101 mm279 mm4.2 kgs
SPECIFICATIONS
Power RatingInput VoltageOutput VoltageHeightWidthDepthWeight
600VA220/230 VAC±10%142 mm101 mm279 mm4.2 kgs
SPECIFICATIONS
Power Rating Input Voltage Output Voltage Height Width Depth Weight
Liebert NXC 10kVA 9KW 305~477 at full load; 228-477 at 70% load 380/400/415 (3-phase) or 220/230/240 (1-phase) 1240 mm 500 mm 860 mm 115 kgs
Liebert NXC 15kVA 13.5kW 305~477 at full load; 228-477 at 70% load 380/400/415 (3-phase) or 220/230/240 (1-phase) 1240 mm 500 mm 860 mm 115 kgs
Liebert NXC 20kVA 18KW 305~477 at full load; 228-477 at 70% load 380/400/415 (3-phase) or 220/230/240 (1-phase) 1240 mm 500 mm 860 mm 115 kgs
Liebert NXC 30kVA 27KW 305~477 at full load; 228-477 at 70% load 380/400/415 (3-phase) or 220/230/240 (1-phase) 1600 mm 500 mm 850 mm 210 kgs
Liebert NXC 40kVA 36KW 305~477 at full load; 228-477 at 70% load 380/400/415 (3-phase) or 220/230/240 (1-phase) 1600 mm 500 mm 850 mm 210 kgs
Liebert NXC 60kVA 54KW 305~477 at full load; 228-477 at 70% load 380/400/415 (3-phase) or 220/230/240 (1-phase) 1600 mm 500 mm 850 mm 225 kgs
SPECIFICATIONS
Power RatingInput VoltageOutput VoltageHeightWidthDepthWeight
600VA220/230 VAC±10%142 mm101 mm279 mm4.2 kgs
SPECIFICATIONS
Power RatingInput VoltageOutput VoltageHeightWidthDepthWeight
600VA220/230 VAC±10%142 mm101 mm279 mm4.2 kgs
SPECIFICATIONS
Power Rating Input Voltage Output Voltage Height Width Depth Weight

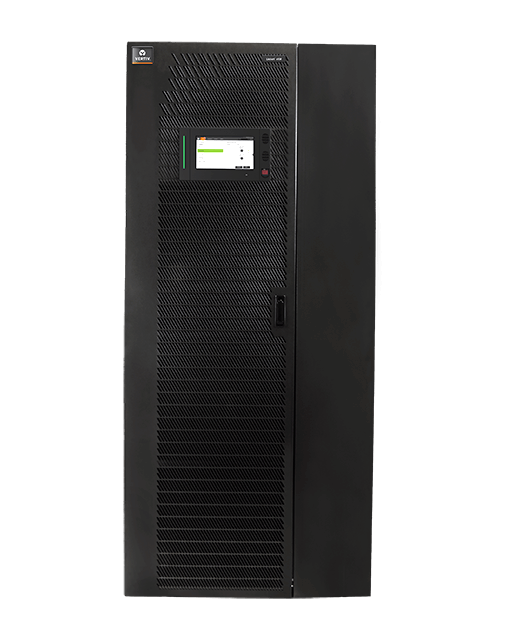

Liebert eXM 80kW 80kVA/kW 380/400/415 380/400/415 2000 mm 600 mm 1000 mm 385 kgs
Liebert eXM 100kW 100kVA/kW 380/400/415 380/400/415 2000 mm 600 mm 1000 mm 430 kgs
Liebert eXM 120kW 120kVA/kW 380/400/415 380/400/415 2000 mm 600 mm 1000 mm 430 kgs
Liebert eXM 160kW 160kVA/kW 380/400/415 380/400/415 2000 mm 600 mm 1000 mm 475 kgs
Liebert eXM 200kW 200kVA/kW 380/400/415 380/400/415 2000 mm 600 mm 1000 mm 520 kgs
SPECIFICATIONS
Power Rating Input Voltage Output Voltage Height Width Depth Weight

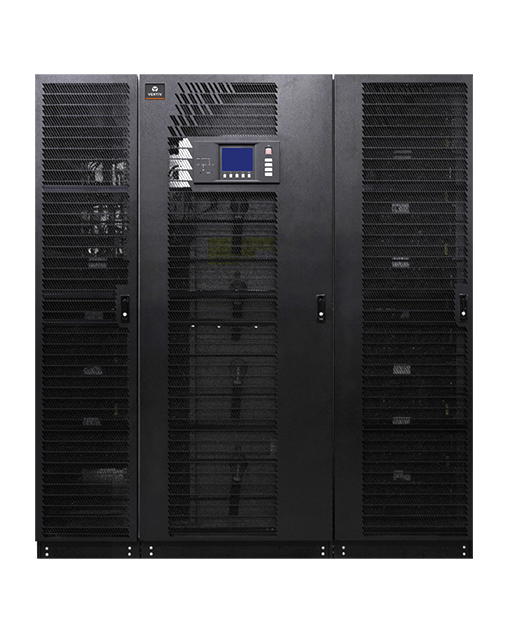

400-600 kW 380/400/415 (three-phase and sharing neutral with 380/400/415 2000 mm 1800 mm 1000 mm 928 kg – 1100kg
SPECIFICATIONS
Power Rating Input Voltage Output Voltage Efficiency Height Width Depth Weight

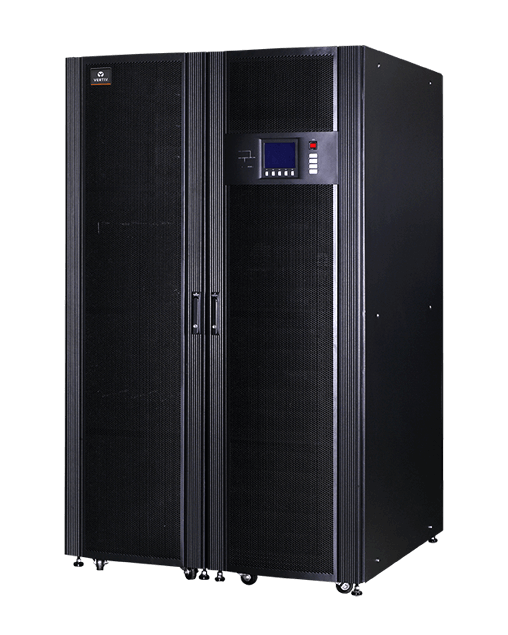

Liebert APM 30kW – 150kW 30-150kVA 380/400/415Vac, 3-phase and 4 -wire 380/400/415Vac, 3-phase and 4 -wire 96% (On line mode), Up to 98% (Eco mode) 2000 mm 600 mm 1100 mm 263 kgs
Liebert APM 30kW – 300kW 30-150kVA 380/400/415Vac, 3-phase and 4 -wire 380/400/415Vac, 3-phase and 4 -wire 96% (On line mode), Up to 98% (Eco mode) 2000 mm 600 mm 1100 mm 704 kgs
SPECIFICATIONS
Input Voltage Wiring Height Width Depth Weight
Liebert AF3 – 30 400 V, 3 Ph + N (+10%, – 15%) 3 Phase 4 Wire, (3 Phase, 3 Wire optional) 800 mm 600 mm 350 mm 120 kgs
Liebert AF3 – 60 400 V, 3 Ph + N (+10%, – 15%) 3 Phase 4 Wire, (3 Phase, 3 Wire optional) 1000 mm 800 mm 600 mm 180 kgs
Liebert AF3 – 100 400 V, 3 Ph + N (+10%, – 15%) 3 Phase 4 Wire, (3 Phase, 3 Wire optional) 1600 mm 800 mm 600 mm 285 kgs
Liebert AF3 – 150 400 V, 3 Ph + N (+10%, – 15%) 3 Phase 4 Wire, (3 Phase, 3 Wire optional) 1600 mm 800 mm 600 mm 285 kgs
Liebert AF3 – 200 400 V, 3 Ph + N (+10%, – 15%) 3 Phase 4 Wire, (3 Phase, 3 Wire optional) 1600 mm 1200 mm 900 mm 285 kgs
Liebert AF3 – 300 400 V, 3 Ph + N (+10%, – 15%) 3 Phase 4 Wire, (3 Phase, 3 Wire optional) 1600 mm 1200 mm 900 mm 600 kgs
